Comprehensive Protection in Explosion-Prone Environments

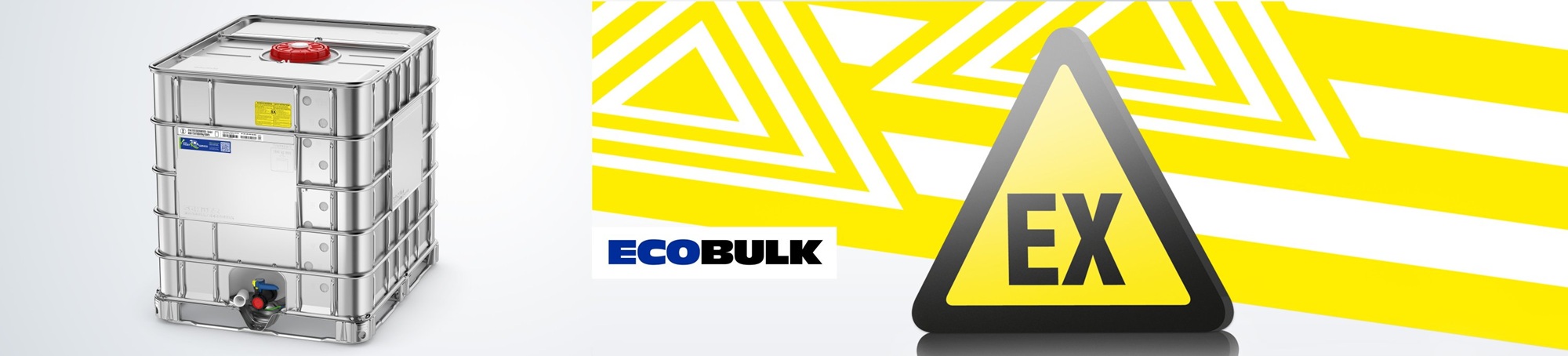

In industries that demand the highest level of safety when handling hazardous and flammable liquids, selecting the right container is a matter of critical importance. SCHÜTZ PACKAGING SYSTEMS proudly introduces the IBC SCHUTZ ECOBULK SX-EX – an Intermediate Bulk Container (IBC) engineered to deliver outstanding safety when atmospheres become potentially explosive.

This is more than just a container – it’s a complete protection system designed to endure extreme conditions and safeguard both your product and workplace environment.

Why IBC SCHUTZ ECOBULK SX-EX is the Top Choice

With decades of experience in innovation and leadership in the industrial packaging sector, SCHÜTZ developed the IBC SCHUTZ ECOBULK SX-EX as a testament to its commitment to safety and durability. This product is the result of advanced engineering, tailored to meet the most stringent requirements for transporting and storing materials in Ex-zones.

What sets the SX-EX apart is its robust steel outer shell – a reflection of SCHÜTZ’s deep expertise in managing physical and thermal risks in hazardous environments.

Superior Protection with Steel Shell & Electrostatic Safety

The standout feature of the IBC SCHUTZ ECOBULK SX-EX is its unique outer shell design and integrated safety features:

• Full Steel Shell Protection: Unlike conventional IBCs, the IBC SCHUTZ ECOBULK SX-EX is equipped with a welded tubular steel cage and a full steel cladding. This steel shell offers enhanced resistance to mechanical and thermal stress, providing exceptional protection against physical impact, fire, or external threats.
• Integrated Antistatic Properties: The steel cladding also protects the container from electrostatic charges, playing a vital role in preventing spark generation in explosion-prone environments.
• Certified for Ex-zones 1 and 2: The SX-EX is suitable for use in hazardous areas classified as Zone 1 and Zone 2, provided legal and company safety precautions are strictly observed.
• Tested Electromagnetic Safety: The product has been tested for electrostatic safety in accordance with rigorous international standards such as IEC/TS 60079-32-1:2013 and TRGS 727:2016.
• Grounded Discharge Valve: The integrated discharge valve is grounded to ensure safe dissipation of any static electricity from the filled product.

Durable Construction & Detailed Specifications

The IBC SCHUTZ ECOBULK SX-EX is designed to meet the most demanding industry requirements:

• HDPE Inner Bottle: Blow-molded from HDPE, the inner bottle is highly durable and optionally available with SMP barrier and additional UV/light protection.
• Steel Pallet: The steel frame steel skid with four-way access enables easy and safe handling. The galvanized steel base plate provides stability and support while minimizing residue after discharge.
• Capacity: SX-EX 1000 holds 1,000 liters (275 gal).
• Dimensions (L×W×H): 1,200 × 1,000 × 1,160 mm.
• Weight: SX-EX 1000 weighs 75 kg with the steel pallet, reflecting the significant reinforcement from the steel shell.
• Filling Opening: DN 150 with screw cap or DN 225 with screw cap.
• Maximum Density: 1.6 g/cm³.

Stacking Capacity:

• Static Load: Up to 4 units.
• Dynamic Load: 2 units for materials up to 1.5 g/cm³ and 1 unit for materials above 1.5 g/cm³.

Certifications:

• Optional UN 31 HA1/Y
• Optional SCHÜTZ FOODCERT (system certification for food-grade applications, compliant with FDA materials)

Frequently Asked Questions (FAQ)

Q1: What is the main difference between the IBC SCHUTZ ECOBULK SX-EX and other SCHÜTZ IBCs?
A1: The key difference lies in the steel outer shell, which provides enhanced resistance to mechanical and thermal stress – far superior to standard IBCs with only a steel cage.

Q2: Is the IBC SCHUTZ ECOBULK SX-EX suitable for use in explosive environments?
A2: Absolutely. The container is certified for use in hazardous zones 1 and 2 and has passed rigorous electrostatic safety testing.

Q3: What is the weight of the IBC SCHUTZ ECOBULK SX-EX 1000?
A3: The SX-EX 1000 weighs 75 kg with the steel pallet.

Q4: Is the discharge valve grounded?
A4: Yes, it is a grounded butterfly valve that safely discharges static electricity from the contents.

Q5: Are additional certifications available?
A5: Yes, optional certifications include UN 31 HA1/Y and SCHÜTZ FOODCERT for FDA-compliant applications.

Contact & Technical Support

To learn more about how the IBC SCHUTZ ECOBULK SX-EX can enhance your operational safety and efficiency, or if you have technical questions, please contact our team of experts at:

Hottel: +84 903186290

Email:

Web: schutzvietnam.com
