Active risk minimisation for demanding filling products

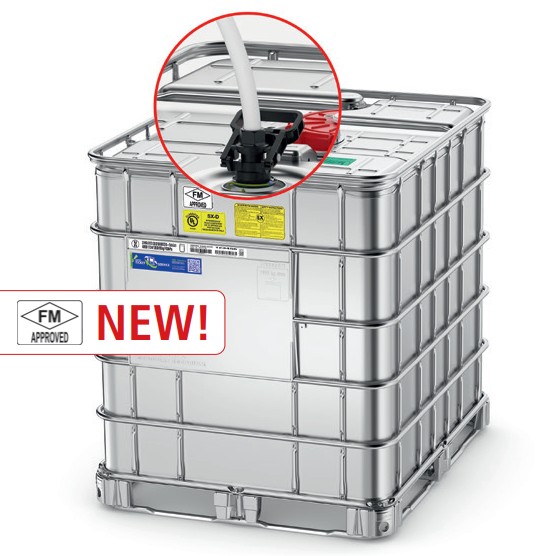

In industries that handle hazardous or high-value materials, the demands for safety, containment, and leak prevention are absolute. SCHUTZ  PACKAGING SYSTEMS proudly presents the IBC SCHUTZ  ECOBULK SX-D – a groundbreaking Intermediate Bulk Container (IBC) engineered for active risk minimisation in demanding applications.

Featuring a unique double-wall construction and pioneering FM APPROVED certification, the SCHUTZ  ECOBULK SX-D sets a new standard for safety and reliability in liquid storage and transport.

Why SCHUTZ  ECOBULK SX-D is the Top Choice?

As a global market leader, SCHUTZ  continuously innovates to tackle the industry's most complex challenges. The ECOBULK SX-D stands as proof of our superior expertise – it is the first composite IBC to receive FM APPROVED certification.

With certifications from FM Global and Underwriters Laboratories, and verified fire resistance under standard fire testing conditions using sprinkler systems, SCHUTZ  maintains a leadership position in delivering the highest safety solutions. The SX-D is engineered to protect your products even under the harshest conditions.

Breakthrough Safety System: Double-Wall Construction & FM APPROVED Certification

The ECOBULK SX-D excels with its exclusive safety features, designed to prevent leaks and protect against environmental hazards:

• Double-Wall Construction: The dual-layer structure ensures maximum safety and leak containment, even under extreme conditions. The outer shell consists of a welded tubular steel grid with a fully enclosed steel cladding welded to the steel base plate. This acts as a secondary containment system and includes additional steel protection caps.
• FM APPROVED Certification: The first composite IBC to earn FM APPROVED certification, rated for storing liquids with a flash point ≥ 37.8°C / 100°F according to FM 6020 testing. This confirms its tested fire resistance.
• Flammable & Combustible Liquid Compatibility: Suitable for transporting flammable and combustible liquids.
• Risk Mitigation: Recognized as a risk-minimising packaging solution for storage and transport.
• Electrostatic Safety & Ex-zones: Certified for electrostatic safety and approved for use in hazardous areas classified as Zone 1 and Zone 2.

Robust Design & Optimized for High Performance

Each component of the ECOBULK SX-D is crafted with precision and premium materials to ensure durability and functionality:

• Inner Bottle: Blow-molded from HDPE, with optional permeation barrier for sensitive contents.
• Base Plate: Constructed from steel for increased stability and efficient residual drainage.
• Pallet: Steel frame skid with four-way access enables easy and safe handling.
• Capacity: 1,000 liters (275 gallons)
• Dimensions (L×W×H): 1,200 × 1,000 × 1,160 mm
• Weight: 75 kg with steel pallet, reflecting the reinforced steel structure.
• Filling Opening: DN 150 with screw cap
• Outlet Options: Available in G2 x 5 and S56 x 4
• Maximum Density: 1.9 g/cm³

Stacking Capacity:

• Static Load: Up to 4 units
• Dynamic Load: 2 units for contents up to 1.5 g/cm³; 1 unit for contents above 1.5 g/cm³

Frequently Asked Questions

Q1: What is the most distinctive feature of the SCHUTZ  ECOBULK SX-D?
A1: Its unique double-wall construction provides secondary containment and it is the first composite IBC with FM APPROVED certification.

Q2: What does FM APPROVED certification mean for the SX-D?
A2: It confirms that the product has passed verified fire-resistance testing under standard conditions using sprinkler systems, and is certified for liquids with a flash point ≥ 37.8°C / 100°F.

Q3: Is the SX-D safe for transporting flammable liquids?
A3: Yes, it is suitable for flammable and combustible liquids, and has been tested for electrostatic safety.

Q4: Is the SX-D suitable for explosive environments (Ex-zones)?
A4: Yes, it is approved for use in Zone 1 and Zone 2 hazardous areas.
